Model VCV Series
Control Valves
Pressures Up to 20,000 psi (1,379 bar)

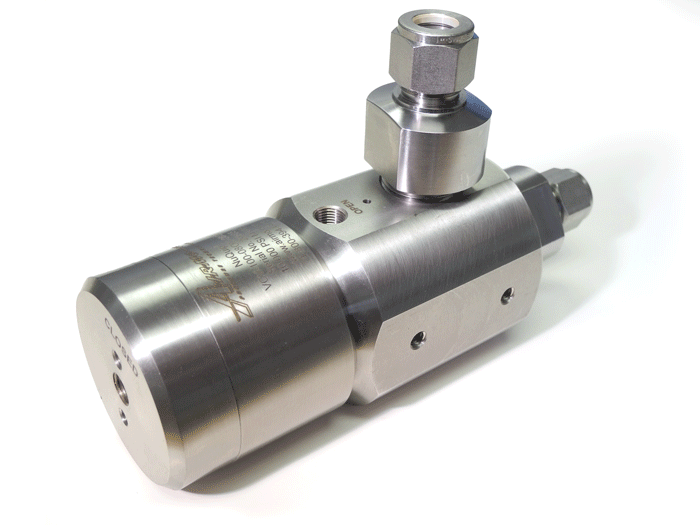

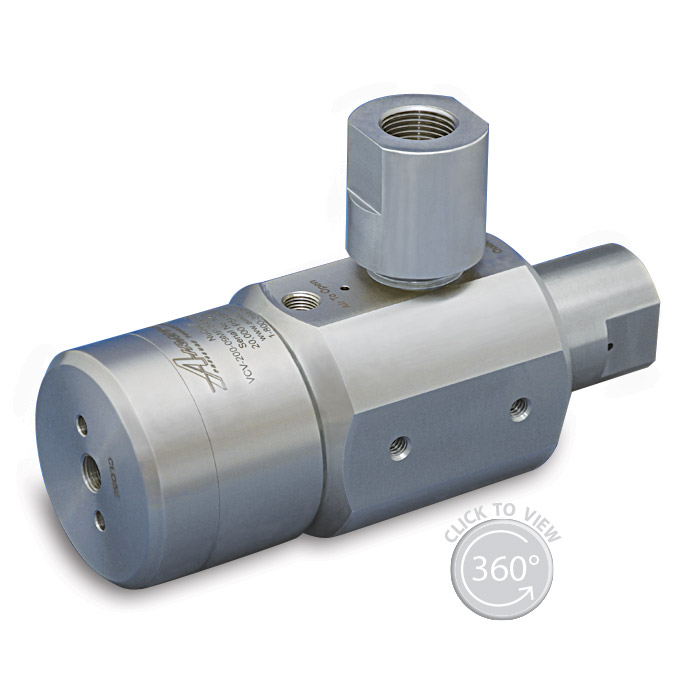

The NuQuip® Model VCV Series Control Valve is a pneumatically-operated fluid control valve designed for high pressures and high flow rates. These two-position valves have a right angle port orientation. The integral air actuators provide rapid switching even at maximum operating pressure, using only 80 psi air (5.5 bar air). The Model VCV Control Valve is available with either metal-to-metal or soft seat configuration. Multiple port choices are available.
Specifications |
Description |
|
| Maximum Pressure: | Working pressures from 10,000 psi (689 bar) to 20,000 psi (1,379 bar) |
|
| Temperature: | 32° F to 120° F (0° C to 49° C) | |
| Services: | Water, oil, other liquids, or inert gases | |
| Operation: | Double pilot air-actuated | |
| Flow Capacity: | Optimized for each port size | |
| Port Styles: | NPT, MP, MS, OD | |
| Seat Styles: | Metal-to-metal or soft seat | |
| Mounting: | Body has six 1/4 in. tapped holes | |
| Construction: | Precision-machined, heat-treated stainless steel | |
| Custom Options: | Custom designs considered |
