Model LPHE Series
Hydrostatic Test Tools
Pressures Up to 5,000 psi (345 bar)

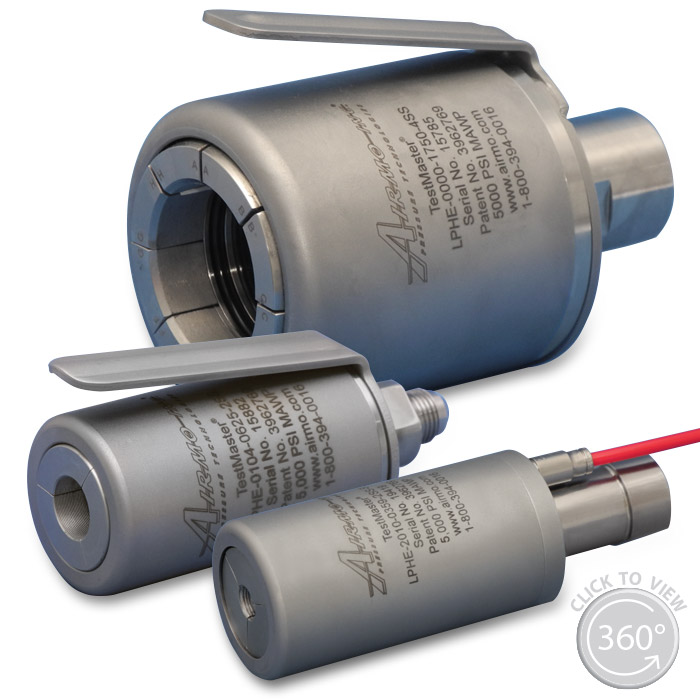

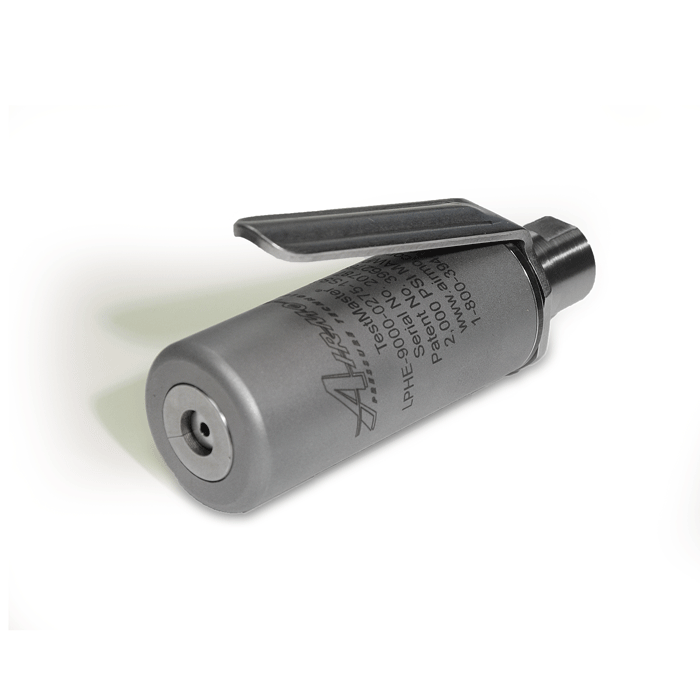

The patented TestMaster® Model LPHE Series Hydrostatic Test Tools are specially designed to grip and provide positive sealing for plain end tubing. The safety spring pre-grips the tube, and the clamping mechanism assure a constant, positive grip during the work cycle. Tools are available with manual lever operation or pneumatic actuation. The tool can be used with a variety of services including helium, water, Skydrol, and other gases and liquids.
The Model LPHE Series Tools are suitable for hydrostatic pressure testing with working pressures up to 5,000 psi (345 bar) according to military, nuclear, automotive, and aerospace specifications: API, ASTM, ASME, ISO, DIN, and BS. The compact, balanced design is particularly suited to restricted work areas, such as aircraft lines or heating and cooling systems.
The Model LPHE Series Tool handles standard and metric tube, pipe, and fitting sizes from 0.13 in. to 3.00 in. (3.2 mm to 76.2 mm) in diameter.
View Hydrostatic Pressure Testing Animation
Specifications |
Description |
|
| Maximum Pressure: | Working pressures up to 5,000 psi (345 bar) | |
| Tube OD Range: | 0.13 in. to 3.00 in. OD (3.2 mm to 76.2 mm OD) | |
| Temperature: | 32° F to 120° F (0° C to 49° C) | |
| Services: | Helium, water, oil, Skydrol, other gases and liquids | |
| Velocity: | Full-flow, high prefill | |
| Collet Grip and Seal: | On tube OD | |
| Gripping: | Pressure-compensated design for safe operation | |
| Tool Operation: | Lever operated or single air-operated | |
| Lever Collet Release: | Fast tool removal | |
| Special Collet Locking Design Principle: | Accommodates shorter length tube | |
| Predetermined Internal Tube Stop: | Requires no measuring | |
| Low Marking Collets: | Prevents tube end collapse and damage | |
| Built-in Tube End Tolerances: | Requires no square cut ends | |
| Compact, Balanced Design: | Ease of use in limited space applications | |
| Construction: | Precision-machined, heat-treated stainless steel | |
| Custom Options: | Custom options considered |
Applications
The TestMaster® Model LPHE Series Tool is used for a variety of pressure testing applications.
| Hydrostatic pressure testing |
| Air underwater leak testing |
| Tube production testing |
| Tube and system assembly testing |
| Cleaning applications |
