Model HCV Series
Control Valves
Pressures Up to 20,000 psi (1,379 bar)

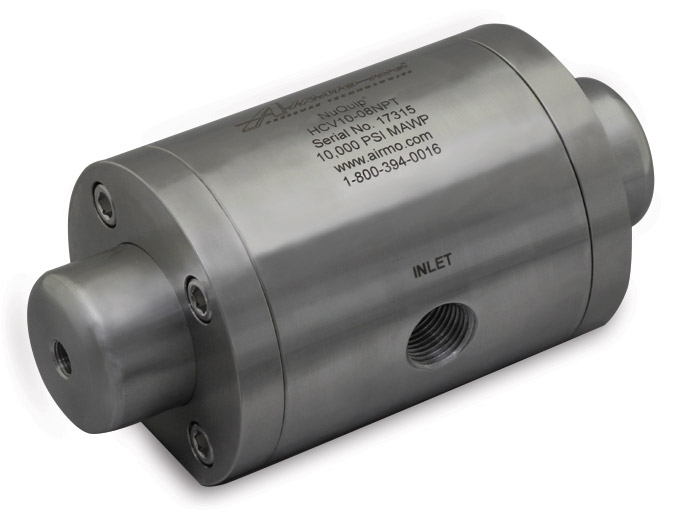

The NuQuip® Model HCV Series Control Valve is a pneumatically-operated fluid control valve designed for high pressures and high flow rates. These two-position valves can be used for 2-way or 3-way functions. The integral air actuators provide rapid switching even at maximum operating fluid pressure, using only 60 psi to 100 psi air (4.2 bar to 6.9 bar). The Model HCV utilizes elastomer and metal-to-metal seals for positive sealing and resistance to debris in the fluid stream. Multiple port choices are available.
Specifications |
Description |
|
| Maximum Pressure: | Working pressures from 10,000 psi (689 bar) to 20,000 psi (1,379 bar) |
|
| Temperature: | 32° F to 120° F (0° C to 49° C) | |
| Services: | Water, oil, other liquids | |
| Operation: | Double pilot air-actuated | |
| Position: | 2-way or 3-way configurations | |
| Flow Capacity: | Optimized for each port size | |
| Port Styles: | NPT or medium pressure | |
| Seat Style: | Metal-to-metal | |
| Mounting: | Base has 3/8 in.-16 tapped holes | |
| Construction: | Precision-machined, heat-treated stainless steel |
|
| Custom Options: | Custom designs considered |
