Model CV Series
Check Valves
Pressures Up to 30,000 psi (2,068 bar)

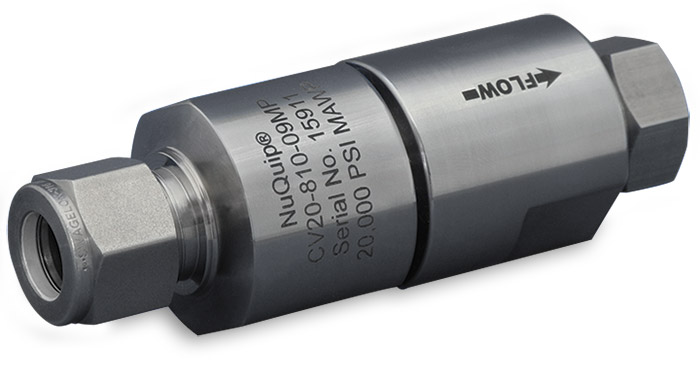

The NuQuip® Model CV Series Check Valve is an in-line piston style valve offering a zero leak design for applications requiring working pressures up to 30,000 psi (2,068 bar). The check valve is built with a spring-tension mechanism and a low cracking pressure of 5 psi (0.3 bar). When the pressure drops below the cracking pressure limit, the spring will close the valve to prevent back-flow into the liquid stream. These check valves are constructed from precision-machined, heat-treated stainless steel.
Specifications |
Description |
|
| Maximum Pressure: | Working pressures up to 30,000 psi (2,068 bar) | |
| Temperature: | 32° F to 120° F (0° C to 49° C) | |
| Design: | Tight sealing, zero leak design | |
| Cracking Pressure: | 5 psi (0.3 bar) | |
| Port Style: | NPT, MS, HP, MP, Type M, Tube OD Seal | |
| Seals: | Multiple seal options (contact Airmo) | |
| Construction: | Precision-machined, heat-treated stainless steel | |
| Custom Options: | Custom designs considered |
