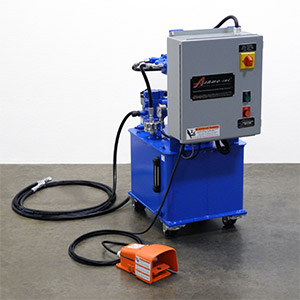

Model 400 Hydraulic End Forming System
Model 400 HPU
Model 400 Hydraulic End Forming System with Optional PLC Interface, Stand, and Finger Controller
Model 400 HPU with Optional PLC Interface, Stand, and Finger Controller

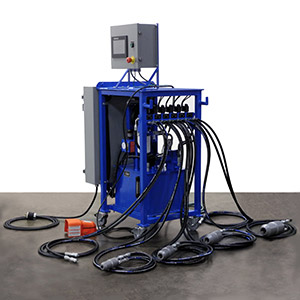

Model 400 HPU with Multi-Tool Work Station

SelectForm Logo

Model 400 HPU (Hydraulic Power Unit)

Pressures Up to 3,000 psi (207 bar)

The SelectForm® Model 400 Hydraulic Power Unit is designed specifically to meet the power source needs for Airmo end forming tools. The Hydraulic Power  Unit (HPU) is equipped with valves and circuitry to reliably operate hand-held and modular end forming tools. The standard Model 400 Hydraulic Power Unit is supplied with an integral oil to air heat exchanger for cooling the hydraulic fluid to provide a continuous duty cycle.

Airmo SelectForm® Hand-held or SelectForm® Modular Tooling produces expansions, reductions, beads, flares, and other shapes on the end of tubes. Tools can be mounted to the top of the hydraulic power unit using optional stand and clamps.

The Model 400 HPU is easy to operate. Simply insert the tube into the tool and actuate the electronically operated foot switch. The system cycles automatically, producing a finished form in 2 to 5 seconds. End forming tools can be quickly changed out with quick disconnect couplers.

The Model 400 HPU is manufactured to customer specifications. Systems can be dedicated and highly automated to a single fixed task or designed to handle a variety of applications.


Specifications
Description
 Maximum Pressure:Working pressures up to 3,000 psi (207 bar)
 Electrical:Tailored to electrical service used
 Temperature:32° F to 120° F (0° C to 49° C)
 Hydraulic Fluid:10 US gallon (38 liters)
 Valves:24 Vdc for safety
 Maximum Oil Flow:.66 gpm (2.5 lpm)
 Digital Pressure Switch & Dwell Timer:For setting hold time duration and activating tool retraction
 Cycle Time:2 seconds for small End Forming Tools
 Operation:Powers SelectForm® End Forming Tools
 Noise Level:System runs quietly
 Construction:Portable system mounted on casters
 Systems:Built for application requirements

Applications

The SelectForm® Model 400 Hydraulic Power Unit is used for many tube end forming and swaging applications.

  • Aerospace and aircraft
  • Boiler tubes
  • Heat exchanger and radiator
  • MilitaryNuclear and hydro-electric
  • Metal furniture
  • On/off-road mobile vehicles
  • Outdoor power equipment
  • Plumbing fittings
  • Sports equipment
  • Boat and water craft
  • Tube manufacturing
  • Swaging

Popular Options

  • Slide mechanism, to initiate forming cycle by inserting tube into tool
  • Auxiliary stand with top plate, provides work surface above power unit; convenient for mounting end forming tools
  • Tool clamp, secures tool on top plate, auxiliary stand, or another work surface
  • PLC touch screen, provides visual display for accurate, repeatable performance with no pressure loss
  • Optical touch switch, uses LED indicators to sense finger placement to activate system pressure cycle
  • Hydraulic manifold, ability to add multiple hydraulic hoses for mounting handle-held end forming tools
