Model 380 Series
Tube Expansion Tools
Pressures Up to 30,000 psi (2,068 bar)

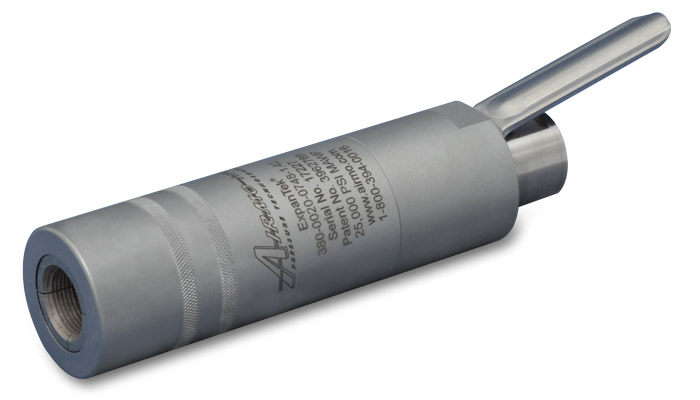

The ExpanTek® Model 380 Series Tube Expansion Tool offers fast, snap-on coupling and positive sealing for high-pressure tube expansion. When used with the ExpanTek® Model HPS Hydraulic Power Supply, the tool rapidly expands tubing for HVAC applications including boiler and refrigeration coils, and tubular assemblies. The Model 380 Series Tool is suitable for high-pressure expansion of tubes with standard OD tolerances and maximum working pressure up to 30,000 psi (2,068 bar).
To expand a tube, connect the Model 380 Tool with optional NuQuip® Automatic Air Bleed Valves to the pressure line. Attach the tool to the tube by pressing the handle to retract collets. Push the tube into the tool until pressed against the tube stop. This instantly provides a complete seal. When the handle on the tool is released, the collets are engaged and ready for safe operation. Next apply system pressure to desired level, but do not exceed maximum operating pressure. After the operation cycles and pressure drops to 0 psi/bar, disconnect by pressing the handle to release collets and pull to remove tool.
The Model 380 Series Tool handles standard and metric tube and fitting sizes from 0.38 in. to 1.00 in. OD (9.6 mm to 25.4 mm OD) in diameter.
View Hydro Expansion Animation
Specifications |
Description |
|
| Maximum Pressure: | Working pressures up to 30,000 psi (2,068 bar) |
|
| Tube OD Range: | 0.38 in. to 1.00 in. OD (9.6 mm to 25.4 mm OD) |
|
| Temperature: | 32° F to 120° F (0° C to 49° C) | |
| Services: | Water, oil, and other liquids on request | |
| Velocity: | Full-flow, high prefill rate | |
| Collet Grip and Seal: | On tube OD | |
| Gripping: | Pressure-compensated design for safe operation | |
| Tube Swallow: | 4 in. (101.6 mm) other tube depths considered | |
| Standard Port: | HP | |
| Predetermined Internal Tube Stop: | Requires no measuring | |
| Compact Balanced Design: | Reduces operator fatigue | |
| Use with NuQuip® Automatic Air Bleed Valves: |
Eliminates operator attendance during fill cycle |
|
| Construction: | Precision-machined, heat-treated stainless steel | |
| Custom Options: | Custom options considered |
Applications
The ExpanTek® Model 380 Series Tool is used in many coil and tube expansion applications.
| Model 380 Tool Applications |
| Boiler coil expansion |
| Refrigeration coil expansion |
| Tubular assemblies |
