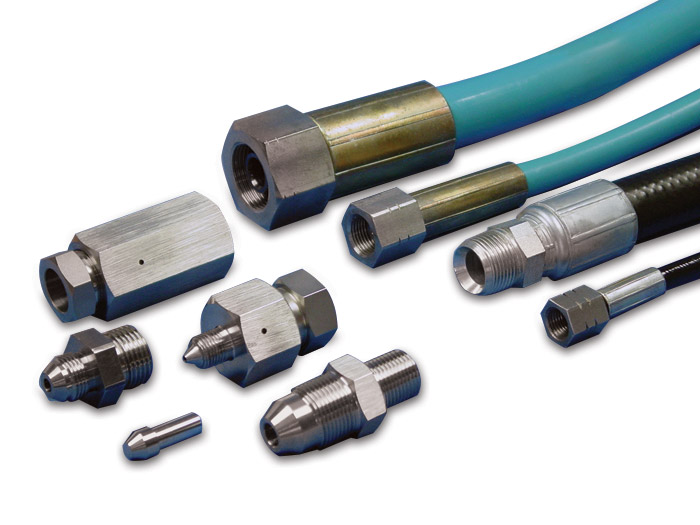

High-Pressure Hoses and Fittings
Pressures Up to 46,400 psi (3,200 bar)
Airmo offers eight series of high-pressure hoses specifically designed to meet industrial requirements, and custom-made hoses for the off-shore industry. Hoses are composed of an inner core made of high-grade thermoplastic material, several layers of high tensile steel wires, and an outer cover of either polyamide or polyurethane. This combination along with a unique spiral winding process to reinforce wires, results in a wide range of flexible hosing.
Please specify the following information when contacting Airmo:
- Type of application
- Maximum pressure range
- Testing media
- Inner hose diameter
- Hose length
- Required fittings for hose end
- Quantity
| Â |
Specifications |
Description |
| Â | Maximum Pressure: | Working pressures up to 46,400 psi (3,200 bar) |
| Â | Fittings: | Stainless steel construction |
| Â | Options: | Variety of configurations available |
| Â | Rating: | High-pressure ratings |
| Â | Flow: | Excellent flow characteristics |
| Â | Expansion: | Low volumetric expansion |
| Â | Chemicals: | Outstanding chemical resistance |
| Â | Weight: | Light-weight and flexible |
| Â | External Pressure: | Resistant to external pressures |
| Â | Environmental | UV and ozone resistant |
| Model Series | Description | ID Hose Size | OD Hose Size | Pressure Rating | Minimal Bend Radius |
| 2 | Light-weight and flexible | 0.13 in. to 0.93 in. (3.3 mm to 23.6mm) |
0.27 in. to 1.22 in. (6.9 mm to 31.0 mm) |
6,382 psi to 17,405 psi (440 bar to 1,200 bar) |
2.4 in. to 11.8 in. (61.0 mm to 299.7 mm) |
| 2K | Flexible with excellent kink resistance | 0.16 in. to 0.93 in. (4.1 mm to 23.6 mm) |
0.39 in. to 1.28 in. (9.9 mm to 32.5 mm) |
6,962 psi to 17,405 psi (480 bar to 1,200 bar) |
2.6 in. to 11.0 in. (66.0 mm to 279.4 mm) |
| 2W | Greatest flexibility with high working pressures | 0.16 in. to 0.50 in. (4.1 mm to 12.7 mm) |
0.39 in. to 0.80 in. (9.9 mm to 20.32 mm) |
13,343 psi to 20,305 psi (920 bar to 1,400 bar) |
2.6 in. to 5.9 in. (66.04 mm to 149.9 mm) |
| 3 | Rugged and durable with high burst pressures | 0.20 in. to 0.25 in. (5.1 mm to 6.4 mm) |
0.42 in. to 0.49 in. (10.7 mm to 12.4 mm) |
15,084 psi to 16,244 psi (1,040 bar to 1,120 bar) |
3.7in. to 4.3 in. (94.0 mm to 109.22 mm) |
| 4 | Versatile for severe service hydraulics, water blasting, and pressure testing | 0.16 in. to 0.78 in. (4.1 mm to 19.8 mm) |
0.40 in. to 1.17 in. (10.2 mm to 29.7 mm) |
14,504 psi to 31,328 psi (1,000 bar to 2,160 bar) |
5.1 in. to 9.8 in. (129.5 mm to 248.9 mm) |
| 6 | Outstanding reliability for toughest extreme pressure applications | 0.16 in. to 0.75 in. (4.1 mm to 19.1 mm) |
0.43 in. to 1.24 in. (10.9 mm to 31.5 mm) |
20,305 psi to 40,611 psi (2,500 bar to 2,800 bar) |
6.9 in. to 13.8 in. (175.3 mm to 350.5 mm) |
| 6H | Extremely flexible for highest working pressures | 0.20 in. to 0.32 in. (5.1 mm to 8.1 mm) |
0.55 in. to 0.70 in. (14.0 mm to 17.8 mm) |
36,260 psi to 40,610 psi (2,500 bar to 2,800 bar) |
8.7 in. to 10.2 in. (221.0 mm to 259.1 mm) |
| 8 | Designed for extreme pressure waterjet cutting and high-pressure robotic applications | 0.16 in. (4.1 mm) |
0.54 in.. (13.7 mm) |
46,400 psi (3,199 bar) |
6.9 in. (175.3 mm) |
