Hand-Held
End Forming Tools
Pressures Up to 3,000 psi (207 bar)
The patented SelectForm® End Forming Tools when used with the Selectform® Model 400 Hydraulic Power Unit provides a quick and precise means of belling, reducing, beading and flaring the ends of tubes made of aluminum, copper, carbon steel, stainless steel, titanium and other materials. SelectForm® End Forming Tools are designed and manufactured to your specified tube dimensions. Hand-held tools can be manufactured in tube diameters ranging from 0.19 in. to 1.38 in. OD (4.7 mm to 35.0 mm OD). If larger diameter tube end forming is required, then we recommend having a table mounted end forming system manufactured.
The Model 400 Series Tools are precision-machined from heat-treated stainless steel to prolong tool life and produce accurate forms every time. The tool is easy to use, simply place the tool over the tube end and depress the foot switch on the power source. The tool cycles automatically and produces the finished form in 2 to 5 seconds. The tools are designed to produce an exclusive shape with low surface marring.
The Model 400 Series Tools are dedicated, hand-held devices that can be quickly changed from one size to another. Tools connect to the Model 400 Hydraulic Power Unit with dual hydraulic hoses, terminated with quick disconnect couplers.
View Model 400 Series Tools in OperationApplications
The SelectForm® End Forming Tools are used for many tube end forming applications.
- Aerospace and aircraft
- Boiler tubes
- Heat exchanger and radiator
- Military
- Nuclear and hydro-electric
- Metal furniture
- On/off-road mobile vehicles
- Outdoor power equipment
- Plumbing fittings
- Sports equipment
- Boat and water craft
- Tube manufacturing
Form tubing made of aluminum, copper, carbon steel, stainless steel, titanium and other materials
Bell the ends of tubing with Model 400 Series Tools

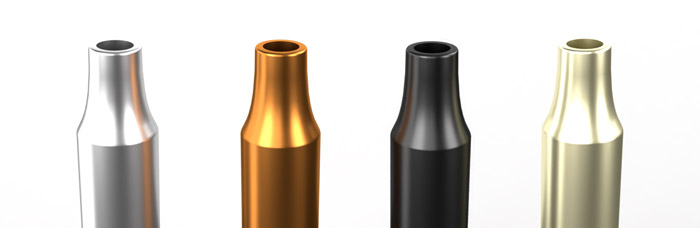

Reduce the ends of tubing with Model 402 Series Tools
Bead the ends of tubing with Model 403 Series Tools
Specifications |
Description |
|
| Maximum Pressure: | Working pressures up to 3,000 psi (207 bar) | |
| Tube OD Range: | 0.19 in. to 1.38 in. OD (4.7 mm to 35.0 mm OD) | |
| Temperature: | 32° F to 120° F (0° C to 49° C) | |
| Cycle Time: | 2 to 5 seconds | |
| Application: | Belling, reducing, beading, flaring and more… | |
| Materials: | Aluminum, carbon steel, copper, stainless steel, and titanium |
|
| Grip: | On tube OD | |
| Gripping: | Pressure-compensated design for safe operation | |
| Actuation: | Hydraulically operated extend and retract | |
| Low Marking Collet Design: | Prevents tube end collapse and damage | |
| Operation: | No lubrication required for most applications | |
| Compact, Balanced Design: | Ease of use in limited space applications | |
| Construction: | Precision-machined, heat-treated stainless steel | |
| Custom Options: | Custom options considered |
